Why Camlock Panels Are a Power Addition to Temporary Power Setups

When you’re setting up for emergency power, wasting hours cutting holes for camlocks and fighting with cable connections is the last thing you need. Power distribution isn’t something that should be time-consuming or frustrating. So, having the right electrical equipment can make your job easier, and Camlock Panels are a simple addition to your temporary power setup that can make a big difference.

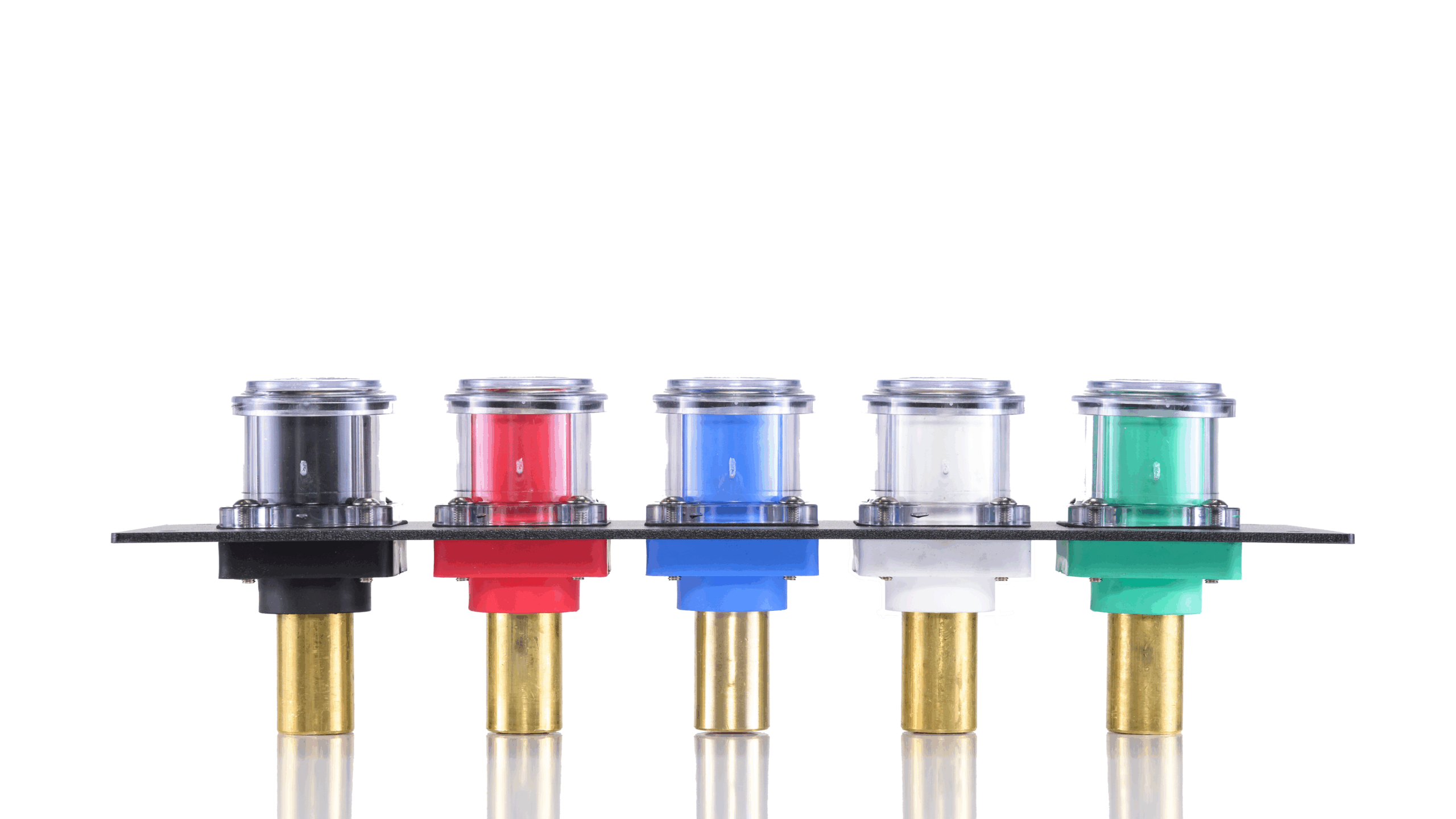

We truly designed these panels with you in mind. They can safely handle your industrial-grade power needs, offer quick and easy cable connections, and have color-coded Series 16 Camlocks to help you quickly spot each phase. Whether your gear already has a panel or you’re thinking about adding one to your setup, it’s a smart solution to keep your crew focused on the work – not the wiring.

Now that you can see the value Camlock Panels bring to your project, let’s take a closer look at their features, variations, and why they’re a great addition to your electrical lineup.

Why Do You Need a Camlock Panel?

If you’re looking to set up a temporary power system for a jobsite, event, or to provide backup power, then a quick-connect Camlock Panel is exactly what you want on hand. Our engineers know that tough jobs call for tough equipment, so we handpicked each component in our panels to make sure they stand the test of time. Available with powder-coated aluminum or non-metallic plates and rated NEMA 3R while connected, they’re ready to handle harsh weather, rough handling, and whatever else your job throws at them.

Not only do these panels save you time, cut down on labor costs, and eliminate the need to cut individual holes for cams, but they also reduce eddy currents to keep your whole electrical system running smoothly. Plus, they arrive ready to install, so you can get started with minimal downtime.

Which Camlock Panel Variation is Best for You?

We can both agree that every project is unique. So, how should you go about picking the right Camlock Panel for your specific needs? Well, it’s important to consider factors like the power requirements of your application, panel placement, and the role that your panel will play in your electrical system.

Let’s take some time to break down our Cam Panel variations to guide you through your options and help you to make an informed decision:

Power Requirements: What amperage and voltage will your electrical system be running at? Once you clarify your power requirements, the rest is easy. We offer panels in 400A to 4000A and a wide variety of voltages, so that you can always find exactly what you need. Whichever variation you choose, our panels come with either clear snapback covers or cap-and-lanyard options to protect contacts while not in use.

Panel Placement: Not sure whether your panel should have 90 or 45-degree camlocks? To break things down, if you’re going with a bottom-mounted setup, our 90-degree (straight) panels are the way to go. For side-mounted configurations, we recommend the 45-degree (angled) panels to make cable connections easier and help with strain relief.

Function: Will your panel be receiving electricity (line) or sending it to downstream equipment (load)? If your panel will be on the input side, the brass contacts in our male panels are the right fit. female panels, on the other hand, should be used as an output to feed downstream equipment. We also offer reverse ground and reverse ground and neutral configurations for a flexible fit across all kinds of jobsite setups. Reverse ground or neutral is typically used in an event-style configuration, when there are multiple personnel plugging in cables and you want to safeguard your equipment, so a hot is never plugged into a neutral or ground. The genders are “reversed”, meaning if your hots are male, your ground and neutral would be female. This makes it impossible to plug a hot into a ground or neutral, and vice versa so you can never plug a ground into a hot on accident.

Which of Our Power Distribution Units Features Camlock Panels?

Since our Camlock Panels are so handy, you can spot them in a lot of our power distribution units. Their plug-and-play design speeds up setup, reduces downtime, and helps streamline your entire power system. To see them in action, let’s spend some time exploring a few of the power distribution units that our panels appear in.

• Camlock Connection Box (CCB) – Streamlines generator connections for power distribution during a power outage.
• Dual Voltage TruOne Transfer Switch – Safely switches your electrical system from utility to generator power during a power outage while preventing backfeeding.

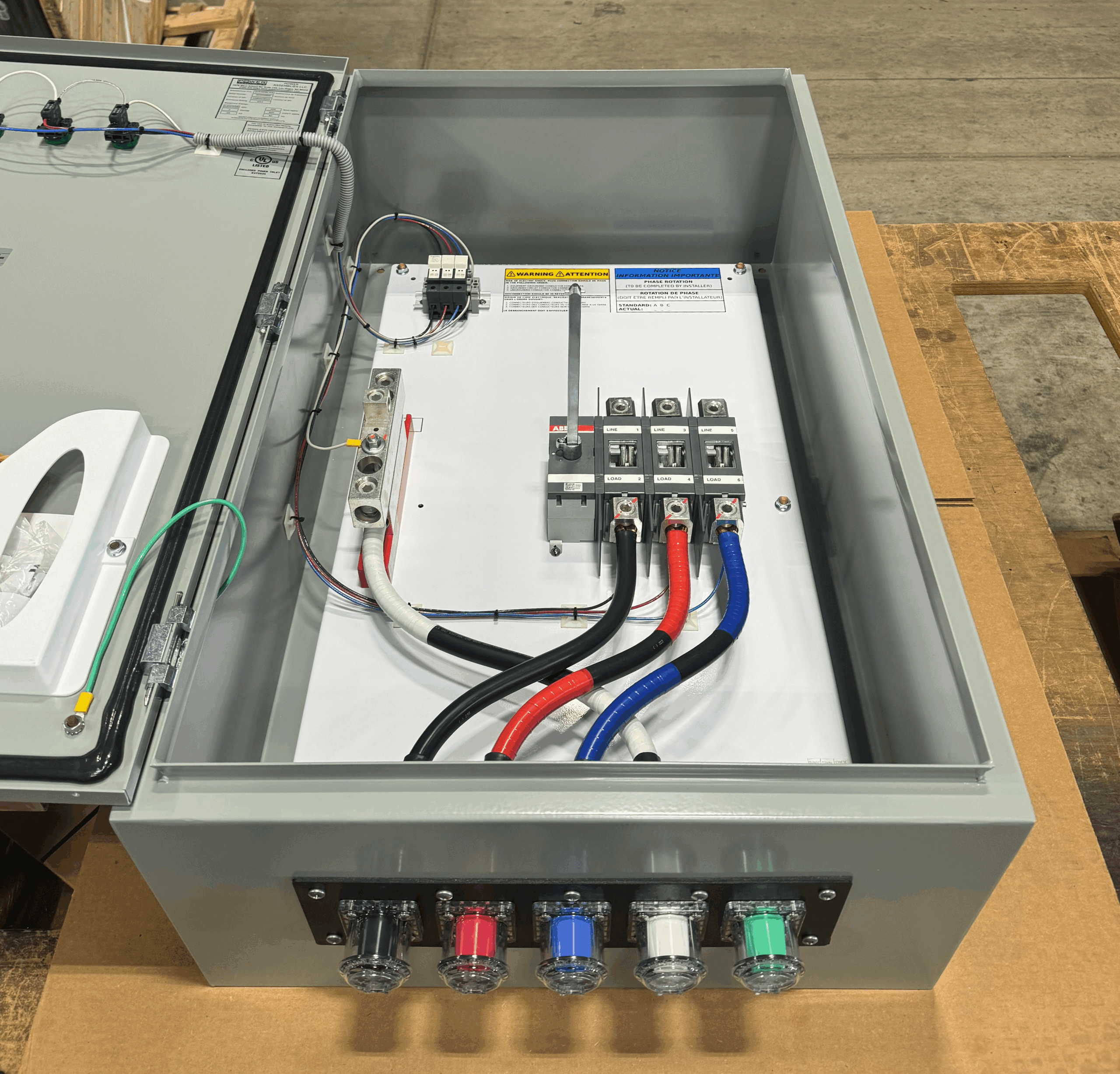

• Quick Connection Switch – Includes a rotary handle with an integrated ABB switching mechanism on the front door to easily open and close connected circuits.
• Portable Transformer Cart – Provides effective conversion from one voltage to another with optional overload protection.
